Vibratory Ball Mill

A vibratory ball mill is a grinding machine that performs fine grinding by applying strong vibrations to the balls and raw material in a cylindrical container. By vigorously vibrating the entire container, it imparts kinetic energy to the balls inside and efficiently grinds and disperses the raw material through impact and friction forces.

Benefits of
Vibratory Ball Mills

Fast Grinding Speed

While a rotary ball mill uses gravity to drop the balls, a vibratory ball mill uses vibrational acceleration to impart strong motion to them. Because the balls repeatedly collide at high speeds, the time required for grinding can be reduced.

Can Achieve Fine Grinding
to the Submicron
and Nanometer Range

The powerful impact energy and shear force generated by vibrations are well suited to producing fine particles. It can achieve ultrafine grinding from several microns to the submicron range and, in some cases, to the nanometer scale. It is also effective at breaking up agglomerated particles and achieving uniform dispersion and mixing of different materials.

Space-Saving Design and
Flexible Operating Modes
(Dry/Wet)

Compared with rotary ball mills, the machine itself is compact, which helps reduce the required installation space. The grinding method can support both dry grinding performed in a dry state and wet grinding using water or solvents. It can also be applied to surface modification that uses grinding energy to achieve mechanochemical effects and promote chemical reactions, as well as to mechanical alloying of dissimilar materials.

Materials Well Suited to
Vibratory Ball Mills

Vibratory ball mills are particularly well suited to processing hard and brittle materials. Efficient fine grinding is possible even with hard, brittle materials such as ceramics, glass, metal oxides, and ores. It is also effective for fibrous materials, which are considered difficult to grind with conventional mills, because strong impact and shear forces act on them.

For heat-sensitive materials, processing can be carried out while suppressing temperature rise by equipping the grinding container with a cooling jacket.

Choosing the Right
Vibratory Ball Mill
for Each Material

While vibratory ball mills offer high grinding energy, the appropriate specifications vary depending on the material characteristics and the target particle size. For example, hard and brittle materials are well suited to vibratory ball mills, while ductile metal materials require careful adjustment of operating conditions and media selection.

The choice between dry and wet processing, the presence or absence of a cooling mechanism to suppress heat generation, and contamination control measures based on ball and liner materials are also important considerations.

Typical Uses and
Applicable Industries

The main application areas are as follows.

• Electronic Components and Ceramics: Fine grinding of MLCC raw materials, secondary battery materials, alumina, and similar materials
• Pharmaceuticals and Food: Dispersion of herbal medicines and food additives (sanitary design available)
• Environment: Recycling of slag and waste concrete

In addition, vibratory ball mills are used in a wide range of industries where fine grinding is required, including the preparation of analytical samples for research and development.

This article reviews and compares vibratory mills from various manufacturers — from industrial models for mass production to small machines for research and development — and organizes suitable models for each material based on differences in structure, vibration method, and processing capacity.

Vibratory Ball Mills
by Manufacturer

This section lists the specifications and company information of 15 manufacturers that produce and sell vibratory ball mills for factory-scale mass production.

These 15 companies were selected from a total of 30 companies appearing in the top 100 Google search results for "Vibration Mill" (English-language sites only) and 12 companies appearing in the top 50 results for "Vibratory Mill" (English-language sites only), as surveyed on January 20, 2026. Only manufacturers whose official websites feature large-scale vibratory mills for factory use were included.

CHUO KAKOHKI

Basic Information:
CHUO KAKOHKI Vibratory Mills

Company Overview:
CHUO KAKOHKI

EPIC Powder Machinery

Basic Information:
EPIC Powder Machinery
Vibratory Mills

Company Overview:
EPIC Powder Machinery

SIEBTECHNIK TEMA

Basic Information:
Siebtechnik Tema Vibratory Mills

Company Overview:
Siebtechnik Tema

MicroGrinding Systems

Basic Information:
MicroGrinding Systems
Vibratory Mills

Company Overview:
MicroGrinding Systems

SWECO

Basic Information: SWECO Vibratory Mills

Company Overview: SWECO

YAMATO KIHAN

Basic Information:
YAMATO KIHAN Vibratory Mills

Company Overview: YAMATO KIHAN

ONURMAKSAN

Basic Information:
ONURMAKSAN Vibratory Mills

Company Overview: ONURMAKSAN

ZJH minerals

Basic Information:
ZJH minerals Vibratory Mills

Company Overview:
ZJH minerals

Tsukishima Kikai

Basic Information:
Tsukishima Kikai Vibratory Mills

Company Overview:
Tsukishima Kikai

MURAKAMI SEIKI

Basic Information: MURAKAMI SEIKI MFG. Vibratory Mills

Company Overview:
MURAKAMI SEIKI

TIANTENG MACHINERY

Basic Information:
Tianteng Vibratory Mill

Company Overview: Tianteng

ALPA

Basic Information:
ALPA Vibratory Mills

Company Overview: ALPA

AGICO CEMENT

Basic Information:
AGICO CEMENT Vibratory Mills

Company Overview: AGICO CEMENT

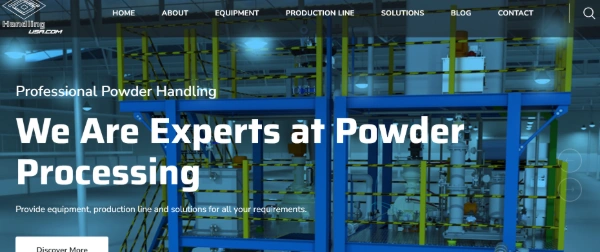

Handling

Basic Information:
Handling Vibratory Mills

Company Overview: Handling

Xiamen Tmax
Battery Equipments

Basic Information:
Xiamen Tmax Battery Equipments
Vibratory Mills

Company Overview: Xiamen Tmax
Battery Equipments
